- Price For: Each External Height: 190mm External Width: 90mm External Depth: 41mm Weight: 330g Kit Contents: Banana to Alligator Test Leads, 9V Battery, Mini USB Interface Cable, AC Adapter (879B only) RoHS Compliant: NA

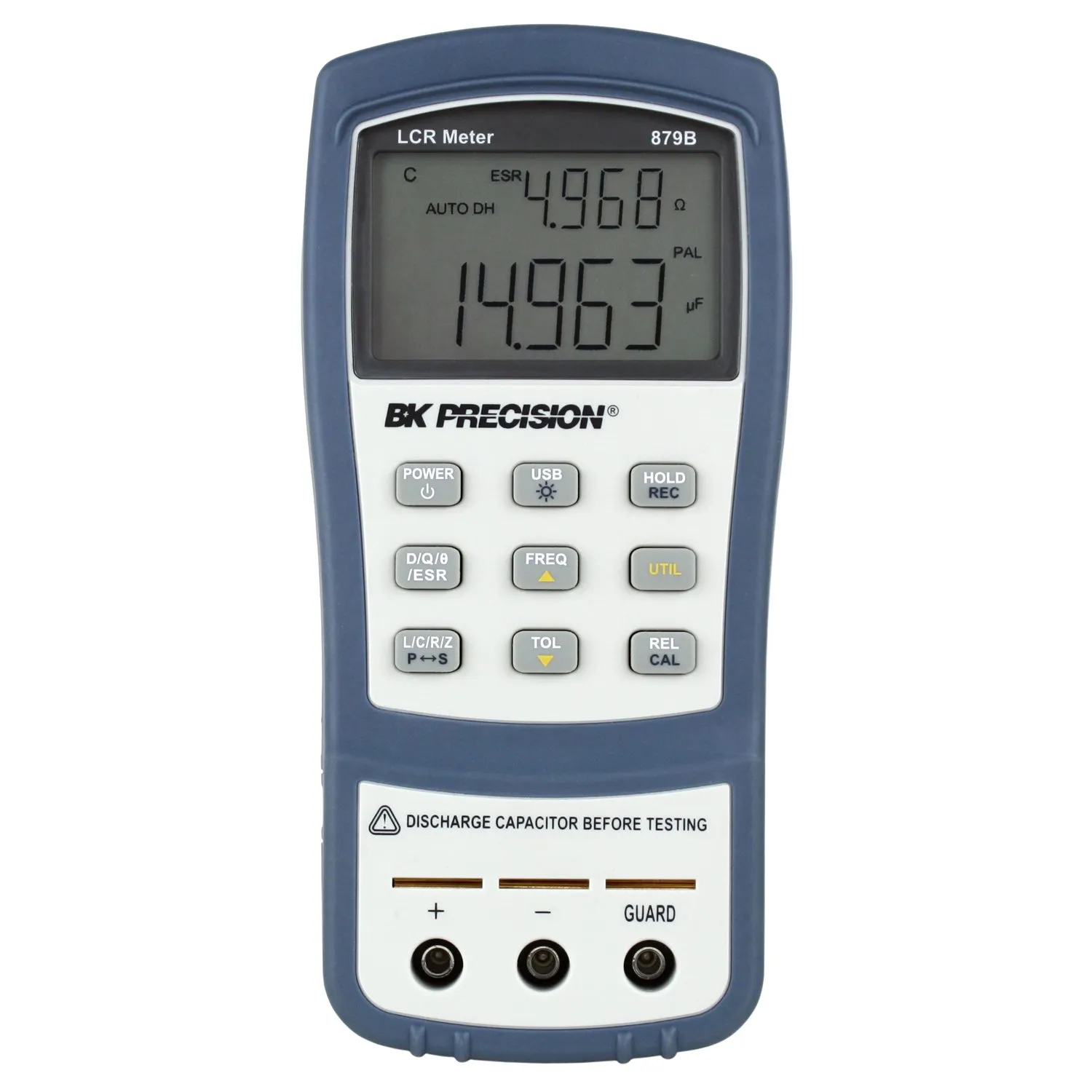

40000 Count handheld LCR meters measures inductance, capacitance, and resistance quickly and precisely. The meters also includes handy functions such as data hold, Minimum/Maximum/Average recording, tolerance sorting, and relative mode. Measurement data can continuously transfer to a PC via the meter's mini USB interface, using either the provided data logging software or SCPI commands sent from a custom program. Fast auto range design for rapid, easy component measurements. USB (Virtual COM) interface. Software for datalogging and front panel emulation available as free download. Selectable auto-power-off options. Applications: Passive component trouble shooting. Electronic assembly. Quality control (component sorting). Measurement parameters: L/C/R/Z/D/Q/Theta/ESR. Test frequency accuracy is 0.02 percent of actual test frequency: 100 Hz, 120 Hz, 1 KHz, 10 kHz (test setting), 100 Hz, 120.048 Hz, 1 kHz, 10 kHz (actual frequency). Tolerance mode: 1 percent, 5 percent, 10 percent, 20 percent. Backlit display: yes Test signal level: almost equal to 0.6 Vrms. Measuring circuit mode: Series mode/Parallel mode. Basic accuracy: 0.5 percent. Ranging mode: Auto. Measuring terminals: 3 terminals with sockets. Measurement rate: 1.5 reading /second (range auto search not included). Response time: almost equal to 680 ms/DUT. Auto power-off: 5, 15, 30, 60 minutes, None. Operation temperature: 32 degree F to 104 degree F; 0-70 percent R.H. Storage temperature: -4 degree F to 122 degree F (-20 to 50 degree C); 0-80 percent R.H. Low battery indication: almost equal to 6.8 V. Battery life: almost equal to 16 hours using Alkaline Battery at 1 kHz with 100 ohm DUT, with backlight off. Power requirements: 1) DC 9V Battery, 2) Ext. DC Adaptor: DC 12 Vmin -15 V Maximum (Load 50 mA Minimum.). Measures 7-1/2" length by 3-1/2" width by 1-19/32" height. 1 year warranty.
- Is Discontinued By Manufacturer : No
- Product Dimensions : 1.61 x 3.54 x 7.48 inches; 11.64 ounces
- Date First Available : July 18, 2011
- Manufacturer : B&K Precision Corporation
- Country of Origin : China
