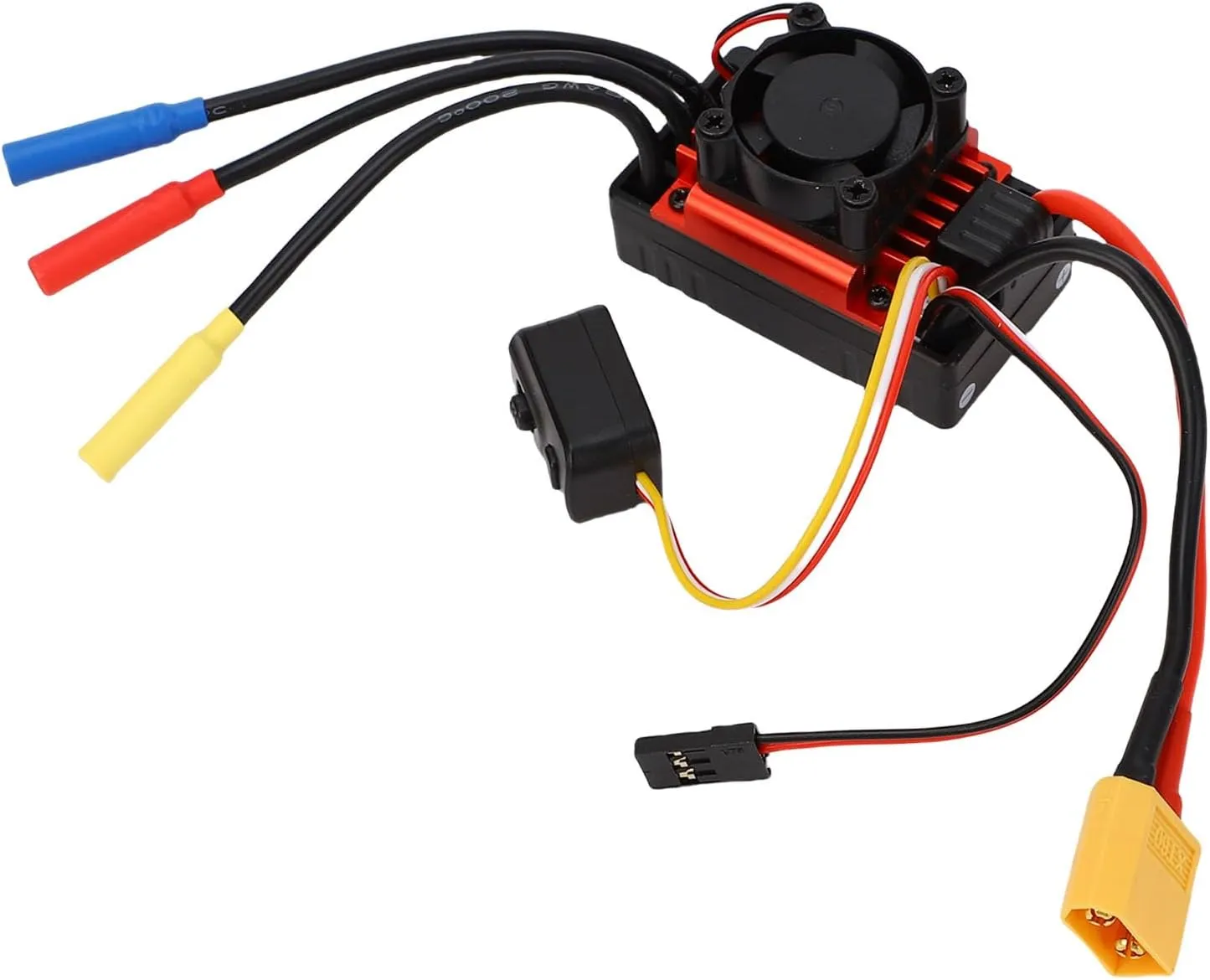

1. WATER PROOF AND DUSTS PROOF: The WSDT-60A brushless RC 60A ESC is suitable for all weather sports competitions. Equipped with an external programming port, making it easy to connect to the program card when setting ESC
2. MULTIPLE PROTECTIONS: RC brushless ESC with low voltage cut off protecting, overheat protecting, throttle signal loss protecting, motor lock protecting
3. POWERFUL PERFORMANCE: Brushless ESC uses proportional braking, maximum braking force adjustment 4 levels, drag braking force adjustment 8 levels; 9 step acceleration(stamping) adjustment, from soft to very aggressive, to adapt to different types of vehicles, tires and tracks
4. APPLICABLE SCENARIO: This 60A brushless ESC is suitable for 1/10 short range trucks, four wheelers, trucks, etc., very versatile, useful and practical
5. WIDE COMPATIBILITY: With built in switch mode BEC, a maximum output of 3Amp and a voltage of 5.85V, this RC brushless ESC is compatible with various servo systems

Spec:
Item Type: Brushless ESC
Material: ABS
Motor Interface Banana Head: Approx. 4mm / 0.16in
Programming: Supports programming cards
Continuation: Fwd, 60A/ Reverse 60A
Peak Current: Fwd, 180A/ Reverse 180A
Resistor: 0.001Ω
Applicable Vehicle Model: 1: 10 road, off road, fit for Buggy
Batteries: 4-9pcs NI-MH batteries, 2-3s li ion batteries
Motor Limitations:
For 2S Lipo Or 6 Cell NIMH Batteries:
On The Road: Engines of 3656 size or smaller, Kilovolts Off Road Vehicle: 3656 size or Small motors with KVFor 3S Lipo Or 9 NIMH Batteries:
On The Road: Engines of 3656 size or smaller, KVOff Road Vehicle: 3656 size or small motors with KVCooling Fan:
Directly from the battery, no adjustment required
Fans can be used in conjunction with 2S and 3S Lipo

How to Use:
Install and use directly.

Package List:
1 x Brushless ESC
1 x User Manual

Notice:
1. Before using this ESC in water,
