- Widely Applicable: Designed for 400-450 size aircraft and RC helicopters, this component boasts a broad range of applications, ensucircle flexibility across various types and systems
- Efficient Performance: Delivers a continuous 30A output and can burst up to 40A for 10 seconds, offecircle high efficiency and reliability for your RC hobbies
- Versatile Power: It accommodates 2-3 cell lithium batteries or 5-9 cell NiCd/NiMH batteries, providing flexibility in power sources to meet diverse needs and preferences
- Robust BEC Support: With a 2A / 5V (linear mode) BEC, it ensures stable power supply for the receiver and servos, and supports maximum speeds of up to 210,000rpm for 2 pole brushless motors, making it ideal for high-speed applications
- Convenient Installation: Features a T plug and 3.5mm banana connectors, simplifying the installation process for an effortless setup, allowing you to get your RC plane or helicopter airborne quickly
This component showcases wide-ranging compatibility with 400-450 class aircraft and RC helicopters, coupled with a high-efficiency output delivecircle continuous 30A and bursts up to 40A. It supports versatile input options from 2-3 cell lithium to 5-9 cell NiCd/NiMH batteries and features a robust 2A / 5V BEC for reliable power supply. With added conveniences like a T plug and 3.5mm banana connectors, installation is streamlined, ensucircle a quick and effortless setup.
Condition: Brand New
Item Type: RC Plane Parts
Material: ABS Electronic Components
Type: 2200KV Motor 6035 Propeller 9G Servo 30A ESC
SG90A 9G Servo:
Size: Approx. 21.5 x 11.8 x 22.7mm / 0.8 x 0.5 x 0.9in
Weight: 9 g / 0.3 oz(approx.)
No-Load Speed: 0.12 seconds / 60 degrees (4.8V)
Blocking Torque: 1.5-1.7kg/cm (4.8V-6V)
Working Temperature: -30 ~ 60 ℃
Dead Zone Setting: 5 microseconds
Working Voltage: 4.8V-6V
A2212 2200kV Motor:
2200 KV:
Ri Ω (M) : 0.033
Battery: 2-3 li - Po
Maximum Power: 342W
Test Item: 7x3/7x4
Motor Size: Approx. 27.5 x 38mm / 1.1 x 1.5in
Shaft Diameter: Approx. 3.17mm / 0.1in

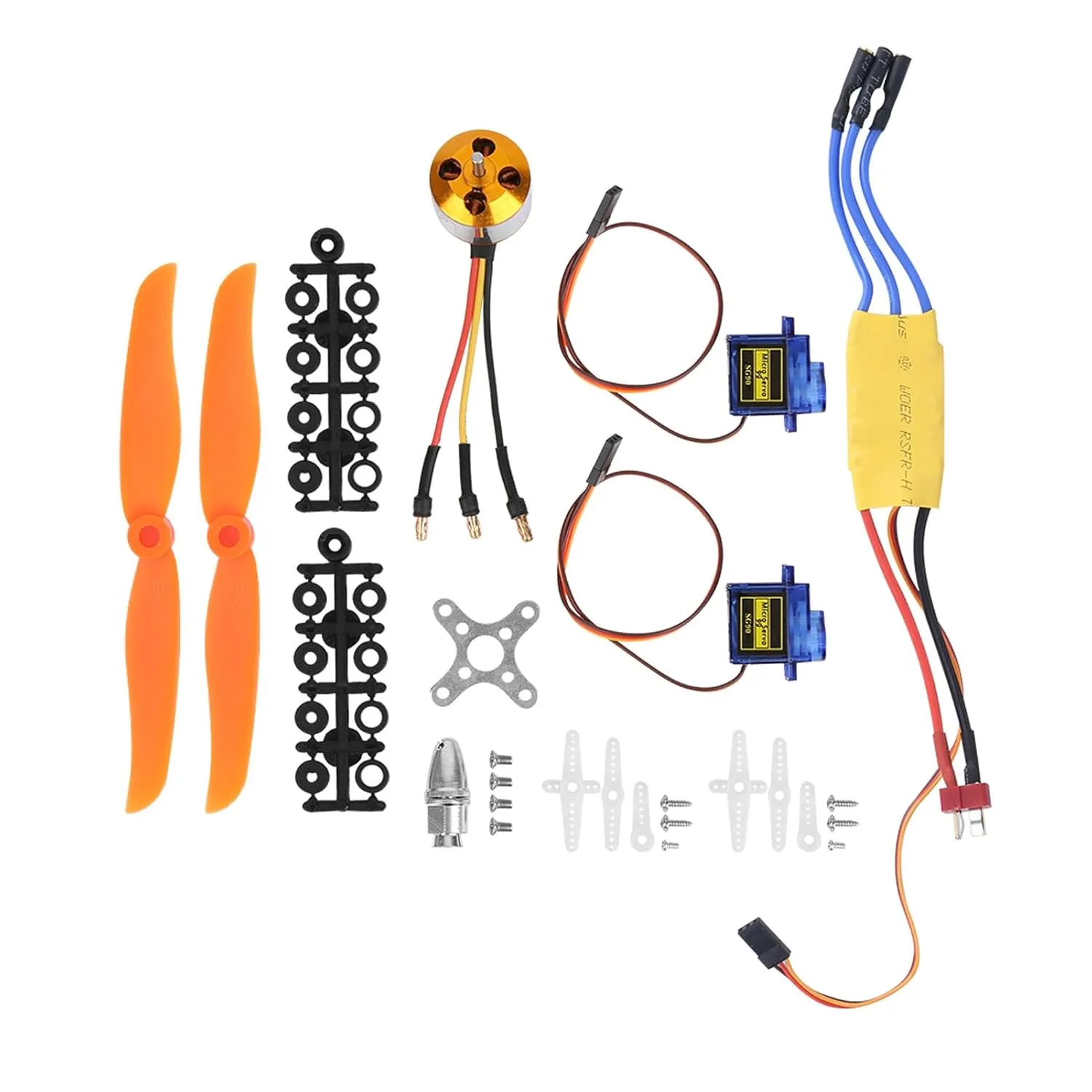

Package List：
2 x 9G SG90 Servo
1 x A2212 KV2200 Brushless Motor
2 x 6035 Propeller
1 x 30A ESC
2 x Propeller Gasket
Note:
This ESC cannot refreshing the firmware.
- Package Dimensions : 7.09 x 4.72 x 1.57 inches; 4.59 ounces
- Date First Available : May 30, 2024
- Manufacturer : Lybunair
