- Scope of Application: The rc plane part is compatible with 400-450 aircraft or RC helicopter.It has widely applications.It is a good choice to replace the old or damaged parts.
- Specification: 2A / 5V (Linear mode). Maximum speed 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.Output, continuous 30A, burst 40A up to 10 seconds.2-3cells lithium battery or 5-9 cells NiCd/NIMh battery.
- Easy to Install: The rc plane brushless motor kit is easy to install and use, without complicated .It comes with T plug and 3.5mm banana connectors, easy and convenient for installation.
- Fine Workmanship: The RC kit has fine workmanship, stable performance, high efficiency and high reliability.It adopts high quality material, which is strong, , not easy to damage.
- Package List: The package includes 2 x 9g sg90 , 1 x kv2200 brushless motor, 2 x 6035 propeller, 1 x 30a esc and 2 x propeller gasket.It is a good upgrade parts for your RC plane.
Feature:
1. Compatible for 400-450 aircraft or RC helicopter, widely applications.
2. Output, continuous 30A, burst 40A up to 10 seconds. High efficiency and reliable.
3. Input voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery.
4. BEC: 2A / 5V (Linear mode). Maximum speed 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
5. With T plug and 3.5mm banana connectors, easy and convenient for installation.
Specification:
Condition: Brand New
Item Type: RC Plane Parts
Material: ABS Electronic Components
Type: 2200KV Motor 6035 Propeller 9G 30A ESC
SG90A 9G :
Size: Approx. 21.5 x 11.8 x 22.7mm / 0.8 x 0.5 x 0.9in
Weight: 9 g / 0.3 oz(approx.)
No-Load Speed: 0.12 seconds / 60 degrees (4.8V)
Blocking : 1.5-1.7kg/cm (4.8V-6V)
Working Temperature: -30 ~ 60 ℃
Dead Zone Setting: 5 microseconds
Working Voltage: 4.8V-6V
A2212 2200kV Motor:
2200 KV:
Ri Ω (M) : 0.033
Battery: 2-3 li - Po
Maximum Power: 342W
Test Item: 7x3/7x4
Motor Size: Approx. 27.5 x 38mm / 1.1 x 1.5in
Shaft Diameter: Approx. 3.17mm / 0.1in

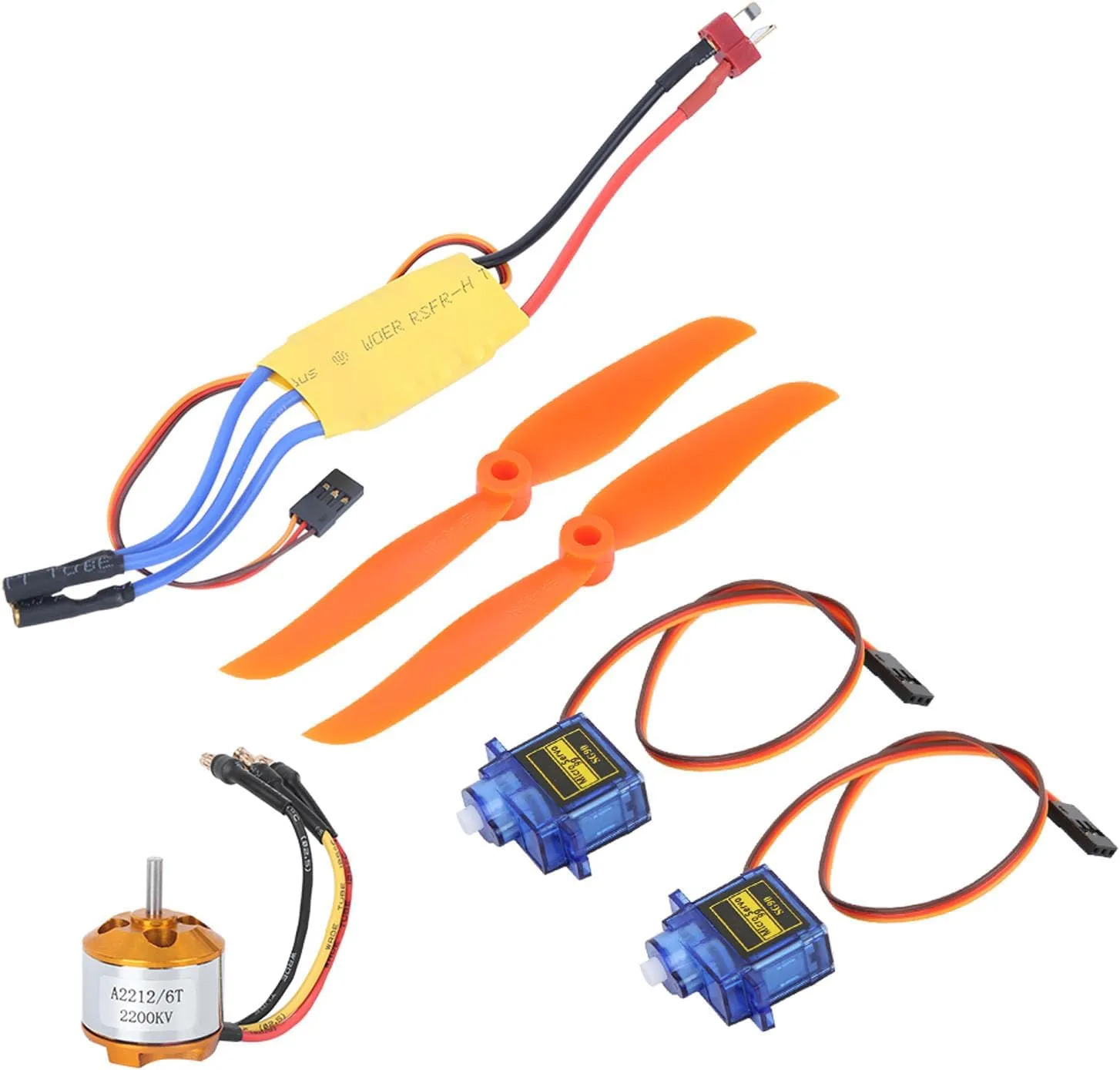

Package List:
2 x 9G SG90
1 x KV2200 Brushless Motor
2 x 6035 Propeller
1 x 30A ESC
2 x Propeller Gasket
Note:
This ESC cannot refreshing the firmware.
